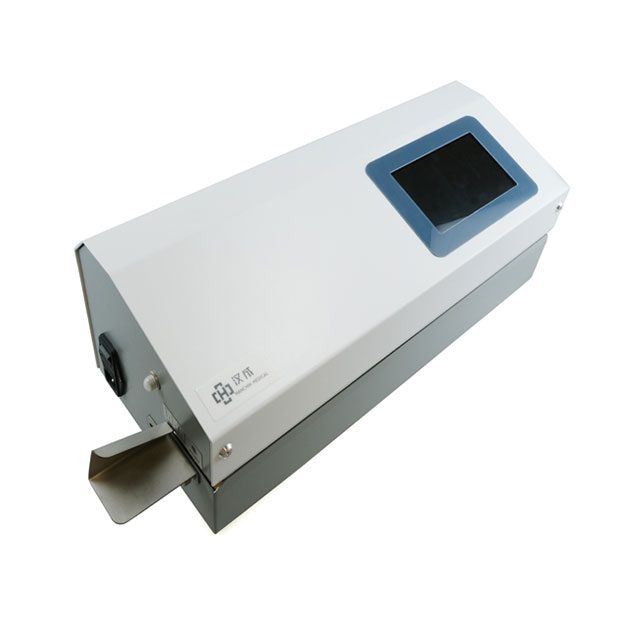

HC-100AP Rapid Sealing Machine with printer (Touch Screen)
Home » Products » Heat Sealing Machine » automatic heat sealing machine » HC-100AP Rapid Sealing Machine with printer (Touch Screen)
Share to:

HC-100AP Rapid Sealing Machine with printer (Touch Screen)

7 "color LCD touch screen, graphical operation interface, Chinese and English display and printing switching, keyboard input control, built-in clock and parameters can be set and have automatic storage function;

It has a positive sequence (descending order) sealing counter, which can realize the statistics of the number of sealing within 0 ~ 9999; it has special functions such as printing margins and printing interval symbols.

With rapid heating and auxiliary cooling design: equipped with microcomputer-controlled heating and cooling mechanism to reduce the waiting time of the sealing temperature from low to high or high to high, efficient and energy-saving, to meet the needs of fast-paced temperature conversion;

Computer intelligent temperature control design, the working temperature can be set arbitrarily from 60 to 220 ℃, and the temperature control accuracy is less than ± 1%; four common temperatures are preset, respectively 60 ℃, 120 ℃, 180 ℃, 220 ℃, according to the user Need to achieve fast switching, convenient for users to quickly choose the sealing temperature;

When the sealing temperature exceeds the working temperature setting range of ± 4 ℃, the machine will automatically stop working, effectively ensuring the quality of the sealing and the safe operation of the equipment;

Adopt floating constant pressure lamination structure design to meet the sealing needs of three-dimensional bags and paper bags of different thickness;

Fault automatic alarm indication, which can realize automatic detection of the working process, and all kinds of faults can be automatically alarmed or prompted;

Standby time and standby temperature can be adjusted, intelligent standby recovery, can restore to working temperature at high speed, reduce waiting time;

Advanced flat-plate ceramic heating components, fast temperature rise, uniform heating, high temperature resistance, long life, high thermal efficiency;

The equipment has its own operation identification function, which can print Chinese and English of test time, sealing temperature, pressure, speed, sealing time, operator and equipment number;

Optional stainless steel sealing machine workstation with paper cutter, roller conveyor platform and other peripheral configurations.


Sealing speed: 10 ± 0.5 m / min

Sealing margin: 0 ~ 35 mm adjustable

Working temperature: 60 ~ 220 ℃ adjustable

Temperature control accuracy: ≤ ± 1%

AC power supply: 220V ± 10% 50Hz

Sealing width: 12 mm

Maximum current: 3.2A

Insurance wire: 5A × 2

Power: 500 W

Dimensions: 560 × 260 × 220mm

With dual operating systems in Chinese and English, can be switched at will. It can print Chinese characters and symbols under the Chinese operating state, and in English operating state, it can print English and symbols;

Chinese, English, numbers, and special character printing functions in accordance with "YY0466-2003 Medical Devices Used in Medical Device Labeling, Marking, and Information-Providing Symbols" can meet the sterilization date, expiration date, and sterilization batch required by the Ministry of Health , Sterilizer number, operator code and other printing functions;

The sterilization date and expiration date can be adjusted automatically according to the settings, and the leap month and size month can be adjusted automatically;

It comes with Chinese and English printing system for sealing machine, built-in a 24-pin printer, clear printing, easy and fast to set printing items, adjustable printing font width, convenient for printing more content to relatively narrow bags, printing function Key close can also close an item as needed, flexible, convenient and fast;

The system will give the print width value according to the selected print content, automatically calculate the minimum printing bandwidth, help the operator determine the number of items before printing to select the appropriate paper-plastic bag, and realize the reminder before sealing when the paper-plastic bag width is insufficient
